K3000L Type Glass Lined Reactor

K3000L Type Glass Lined Reactor





Glass lined reaction tank Introduction

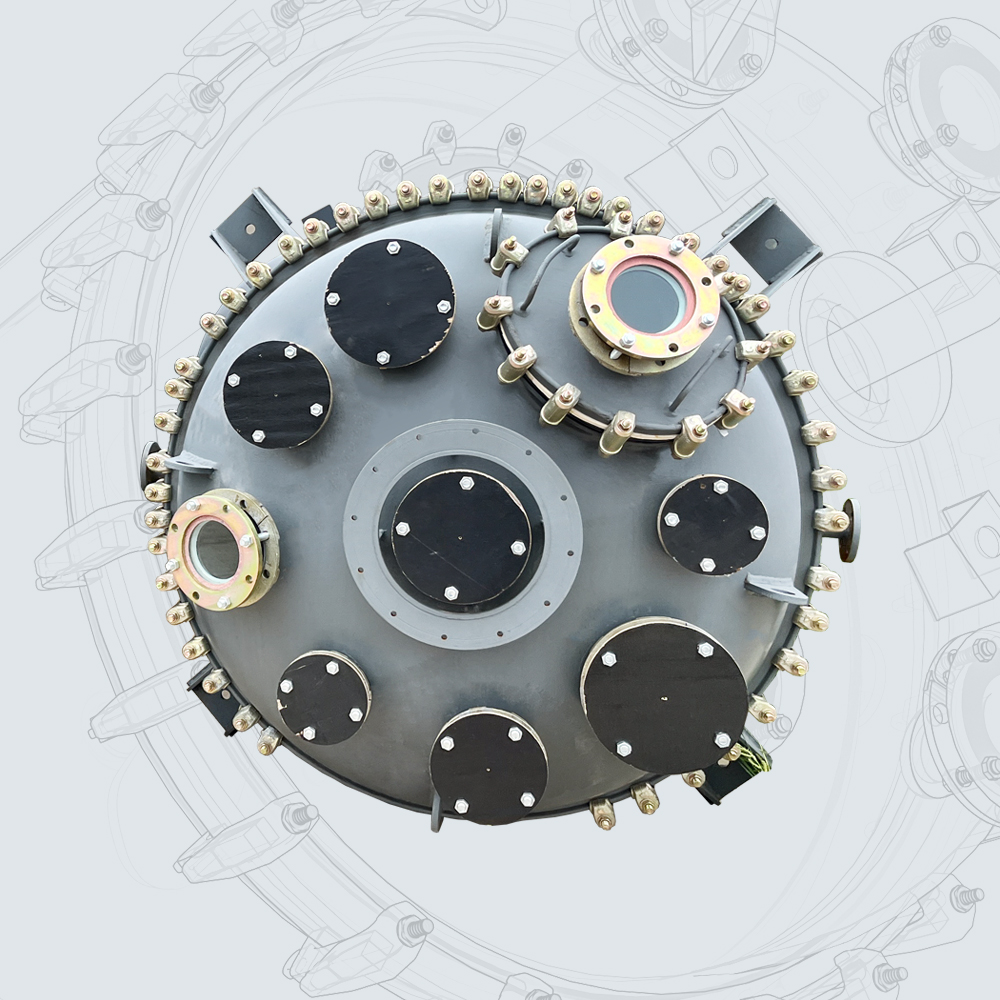

Glass lined continuous stirred tank reactor,AE type glass lined reaction tank is a porcelain enamel rich in silica, lined on the inner surface of the steel vessel, and become a composite product by high temperature firing and firmly dense on the metal surface. Therefore, it has the double advantages of stability of glass and strength of metal, and is an excellent corrosion-resistant equipment. The AE type glass lined reaction tank is separated by body and cover, and connected by gasket and tank card in the middle, so it is easy to disassemble the open type, and if there is a problem with the pipe opening on the cover, it is easy to remove and repair separately.


Technical Parameters


INNER VESSE

JACKET
MATERIALCarbon Steel with Glass LinningCarbon Steel
DESIGN PRESSURE(Mpa)-0.1 / 0.60 / 0.6
DESIGN TEMPERATURE(℃)-19 / 200-19 / 200
WORKING TEMPERATURE(℃)-19 / 200
GLASS LINED THICKNESS(mm)0.8-2.0

RESISTANCE TO SHARP

TEMPERATURE VARIATION(℃)

COOL SHOCK 110,HOT SHOCK 120

Glass Lined Reactor

Main Dimensions of AE type glass lined reaction tank (50-5000L)

NOMINAL

VOLUME

(L)

ACTUAL

VOLUME

(L)

HEAT

EXCHANGE

AREA(m2)

POWER

(Kw)

D

(mm)

D1

(mm)

D2

(mm)

D3

(mm)

H

(mm)

H1

(mm)

H2

(mm)

H3

(mm)

H0

(mm)

WEIGHT

(Kg)

5070
0.340.755006007082704653002659452030445
1001270.840.756007008262705653203009452170548
2002471.441.17008009273007703503459532440649
3003691.753.0800900102835087038038011542770968
5005882.643.0900100011273501070400405115430301175
100012454.54.01200130014614001270500480127633601803
150017145.24.01300145016554001470650505127633262190
200021607.024.01300145016554001815650505127636712450
300032378.615.51600175019604501810700580131637913470
4000425511.75.51600175019604502310700580131642914018
4000434010.95.51750190021524502025700620131640464416
5000538013.635.51600175019604502810700580131647914568
5000534013.85.51750190021524502485700620131645085026

Nozzle Size of AE type Glass Lined Reactor (50-5000L)

NOMINAL

VOLUME(L)

M

H

e

T1

S1

a

b

c

d

f

n1-2

n3

L1-2

50-8070707070---70--20
100-8070707070---70--20
200-1258070708070--80--25
300-12510070708070--80--25
500-1501007080100125--80--32
1000300×400-125100100100125100100100--32
1500300×400-12510012510012510012510050-40
2000300×400-12510012510012510012510050-40
3000300×400-12510012510012510012512565-50
4000300×400-12510012510012510012512565-50
4000300×400-125125125125150125125125656570
5000300×400-12510012510012510012512565-50
5000300×400-125125125125150125125125656570

Glass Lined Reactor Process Flow


glass line reactor.jpg

Glass lined continuous stirred tank reactor Advantages

●   For small, medium and small scale chemical and pharmaceutical production.

●   The lid can be separated from the tank, and a variety of stirrer types can meet the different process needs of users.

●   After removing rust on the surface of the chemical reactor, spraying environmental protection water-based paint makes the product more beautiful and environmental friendly.

●   Comply with ASTM, ASME, CE, CN standards

●   Various non-standard capacities can be designed and customized according to customers' requirements.
