K10000L Type Glass Lined Chemical Mixing Reactor

INQUIRY



Glass lined reaction tank Introduction

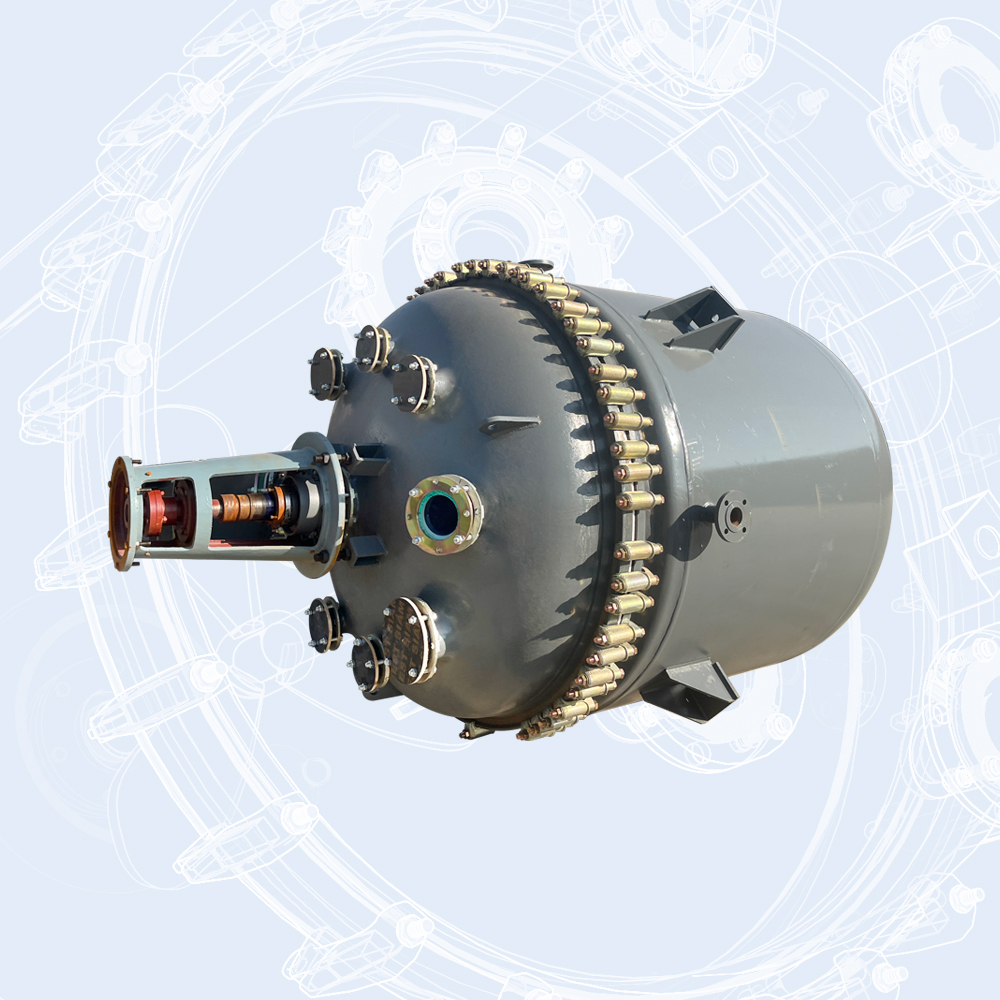

Glass lined continuous stirred tank reactor，AE type glass lined reaction tank is a porcelain enamel rich in silica, lined on the inner surface of the steel vessel, and become a composite product by high temperature firing and firmly dense on the metal surface. Therefore, it has the double advantages of stability of glass and strength of metal, and is an excellent corrosion-resistant equipment. The AE type glass lined reaction tank is separated by body and cover, and connected by gasket and tank card in the middle, so it is easy to disassemble the open type, and if there is a problem with the pipe opening on the cover, it is easy to remove and repair separately.

Technical Parameters

	INNER VESSE	JACKET
MATERIAL	Carbon Steel with Glass Linning	Carbon Steel
DESIGN PRESSURE（Mpa）	-0.1 / 0.6	0 / 0.6
DESIGN TEMPERATURE（℃）	-19 / 200	-19 / 200
WORKING TEMPERATURE（℃）	-19 / 200
GLASS LINED THICKNESS（mm）	0.8-2.0
RESISTANCE TO SHARP TEMPERATURE VARIATION（℃）	COOL SHOCK 110，HOT SHOCK 120

Glass Lined Reactor

Main Dimensions of AE type glass lined reaction tank (50-5000L)

NOMINAL VOLUME (L)	ACTUAL VOLUME (L)	HEAT EXCHANGE AREA(m2)	POWER (Kw)	D (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	H1 (mm)	H2 (mm)	H3 (mm)	H0 (mm)	WEIGHT (Kg)
50	70	0.34	0.75	500	600	708	270	465	300	265	945	2030	445
100	127	0.84	0.75	600	700	826	270	565	320	300	945	2170	548
200	247	1.44	1.1	700	800	927	300	770	350	345	953	2440	649
300	369	1.75	3.0	800	900	1028	350	870	380	380	1154	2770	968
500	588	2.64	3.0	900	1000	1127	350	1070	400	405	1154	3030	1175
1000	1245	4.5	4.0	1200	1300	1461	400	1270	500	480	1276	3360	1803
1500	1714	5.2	4.0	1300	1450	1655	400	1470	650	505	1276	3326	2190
2000	2160	7.02	4.0	1300	1450	1655	400	1815	650	505	1276	3671	2450
3000	3237	8.61	5.5	1600	1750	1960	450	1810	700	580	1316	3791	3470
4000	4255	11.7	5.5	1600	1750	1960	450	2310	700	580	1316	4291	4018
4000	4340	10.9	5.5	1750	1900	2152	450	2025	700	620	1316	4046	4416
5000	5380	13.63	5.5	1600	1750	1960	450	2810	700	580	1316	4791	4568
5000	5340	13.8	5.5	1750	1900	2152	450	2485	700	620	1316	4508	5026

Nozzle Size of AE type Glass Lined Reactor (50-5000L)

NOMINAL VOLUME(L)	M	H	e	T1	S1	a	b	c	d	f	n1-2	n3	L1-2
50	-	80	70	70	70	70	-	-	-	70	-	-	20
100	-	80	70	70	70	70	-	-	-	70	-	-	20
200	-	125	80	70	70	80	70	-	-	80	-	-	25
300	-	125	100	70	70	80	70	-	-	80	-	-	25
500	-	150	100	70	80	100	125	-	-	80	-	-	32
1000	300×400	-	125	100	100	100	125	100	100	100	-	-	32
1500	300×400	-	125	100	125	100	125	100	125	100	50	-	40
2000	300×400	-	125	100	125	100	125	100	125	100	50	-	40
3000	300×400	-	125	100	125	100	125	100	125	125	65	-	50
4000	300×400	-	125	100	125	100	125	100	125	125	65	-	50
4000	300×400	-	125	125	125	125	150	125	125	125	65	65	70
5000	300×400	-	125	100	125	100	125	100	125	125	65	-	50
5000	300×400	-	125	125	125	125	150	125	125	125	65	65	70

Glass Lined Reactor Process Flow

glass line reactor.jpg

Glass lined continuous stirred tank reactor Advantages

● For small, medium and small scale chemical and pharmaceutical production.

● The lid can be separated from the tank, and a variety of stirrer types can meet the different process needs of users.

● After removing rust on the surface of the chemical reactor, spraying environmental protection water-based paint makes the product more beautiful and environmental friendly.

● Comply with ASTM, ASME, CE, CN standards

● Various non-standard capacities can be designed and customized according to customers' requirements.
