Glass Lined Storage Tank

K200L type vertical glass lined storage tank K200L type vertical glass lined storage tank K200L type vertical glass lined storage tank K200L type vertical glass lined storage tank K200L type vertical glass lined storage tank K200L type vertical glass lined storage tank

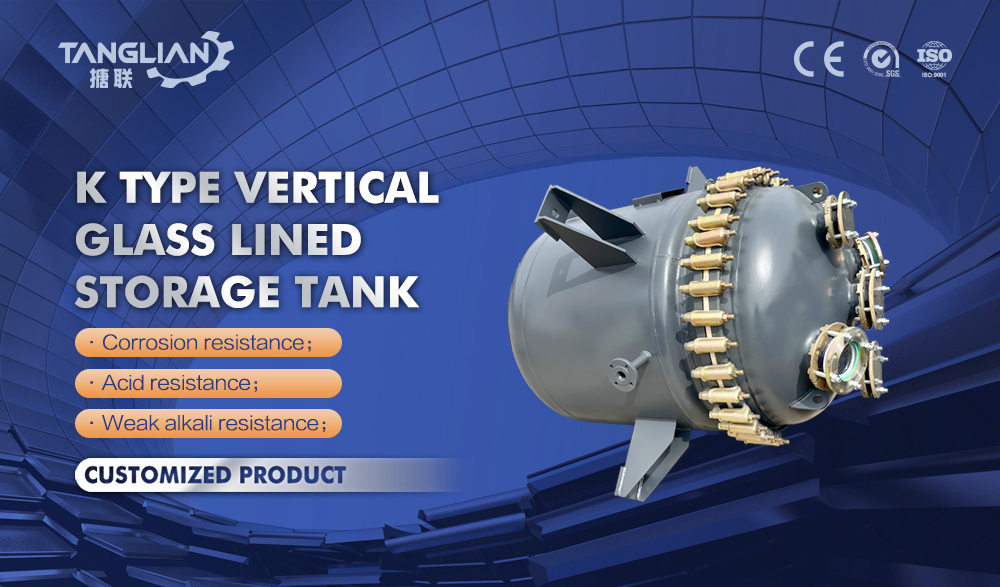

K200L type vertical glass lined storage tank




Glass lined steel tank Introduction

chemical equipment receiving tank Glass Lined Tanks(also called metering tank), is a kind of glass lined equipment for storing acid, alcohol, gas and other dangerous raw materials, divided intoglass lined steel tank, vertical open type glass lined receiving tank (i.e. K type glass lined storage tank), vertical closed type glass lined storage tank (i.e. F type glass lined storage tank), used as vacuum, can be configured with jacket for heating and insulation of the corresponding raw materials, used in petroleum, chemical, grain and oil, food, fire fighting, transportation, metallurgy and other industries.

>Glass lined storage tank

Technical Parameters


Specification

MATERIALCarbon Steel with Glass Linning
DESIGN PRESSURE(Mpa)Atmospheric pressure
DESIGN TEMPERATURE(℃)-19 / 200
GLASS LINED THICKNESS(mm)0.8-2.0


>Glass lined storage tank

Main Dimensions of Vertical K Type Glass Lined Steel Tank (200-2000L)

NOMINAL

VOLUME

(L)

ACTUAL

VOLUME

(L)

D

(mm)

D1

(mm)

D2

(mm)

H

(mm)

H1

(mm)


H2

(mm)


PN

0.25

Mpa


PN

0.6

Mpa


WEIGHT

(Kg)

K2002406003604201615300965BM12/28AM12/36236
K30036070042049017453451070BM12/36AM16/32408
K50060080048056021303801370BM12/40AM16/36544
K10001200100060070023504301770BM16/40AM16/44915
K20002400130078091026105051970BM16/56AM20/521400

Nozzle Size of Vertical K Type Glass Lined Storage Tank (200-2000L)

NOMINAL

VOLUME(L)

a

b

c

d

g

h
K20012570707070-
K30012580707080-
K50015080807080-
K100015080808080-
K2000400×300100808010080

Process Flow

glass line reactor.jpg

chemical equipment receiving tank Glass Lined Tanks Advantages

Vertical K type Corrosion resistance industrial enamel Storage Tank is separated by body and cover, connected by gasket and tank card in the middle, open type is more convenient to disassemble, this type of glass lined receiver comes with relatively small volume. However, it offers exceptional corrosion resistance, sheer reliability, stable lining and long service life.standard models are K200L, K300L, K500L, K1000L, K2000L. (Processing according to the user's drawing)

Factory Scenes

Shandong Tanglian Heavy Industrial Group , one of the longest established factories for Chemical reactors / Chemical vessels in China  .
We have ISO , SGS , CE ,EU Welder Approval Test Certificate for our company , products and workers .

We mainly focus on below products
Chemical reactor ,  Storage / Receiving /
Buffer tank
Column / Tower section , Pipe line
Heat exchanger  / condenser , Evaporator

Main material of our equipment :
Glass Lining ,     PTFE,ETFE,PFA Lining
Stainless Steel , Carbon Steel , Hastelloy  , DP Steel
