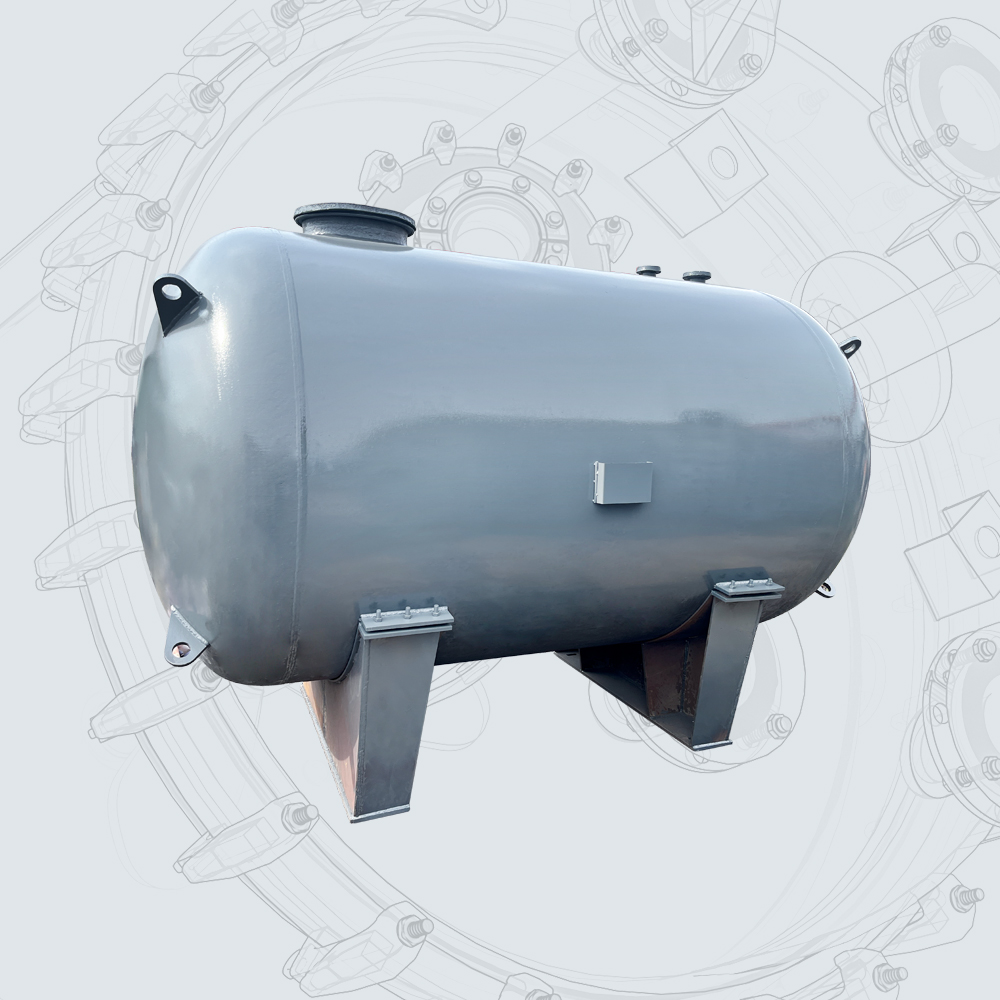

Horizontal Glass Lined Storage Tank Introduction

Glass lined storage tank (also called metering tank), is a kind of glass lined equipment for storing acid, alcohol, gas and other dangerous raw materials, divided into horizontal glass lined storage tank, vertical open type glass lined storage tank (i.e. K type glass lined storage tank), vertical closed type glass lined storage tank (i.e. F type glass lined storage tank), used as vacuum, can be configured with jacket for heating and insulation of the corresponding raw materials, used in petroleum, chemical, grain and oil, food, fire fighting, transportation, metallurgy and other industries.

Glass lined storage tank.jpg

Technical Parameters

	Specification
MATERIAL	Carbon Steel with Glass Linning
DESIGN PRESSURE（Mpa）	Atmospheric pressure
DESIGN TEMPERATURE（℃）	-19 / 200
GLASS LINED THICKNESS（mm）	0.8-2.0

Glass lined storage tank

Main Dimensions of Horizontal Glass Lined Storage Tank (3000-50000L)

NOMINAL VOLUME (L)	ACTUAL VOLUME (L)	D (mm)	H1 (mm)	H2 (mm)	H3 (mm)	H (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L (mm)	A (mm)	K (mm)	WEIGHT (Kg)
3000	3337	1450	1100	1200	1089	2146	934	260	1454	2288	1300	1090	1700
4000	4457	1450	1100	1200	1089	2146	1494	320	2134	2968	1300	1090	2000
5000	5550	1600	1200	1200	1166	2300	1420	360	2140	3052	1430	1180	2500
6300	7024	1750	1300	1300	1243	2454	1474	390	2254	3246	1560	1300	3200
8000	8910	1900	1300	1400	1318	2604	1590	420	2430	3496	1690	1420	3800
10000	11094	2000	1400	1400	1368	2704	1880	450	2780	3900	1780	1490	4700
12500	13920	2000	1400	1400	1368	2704	2740	470	3680	4800	1780	1490	5700
16000	17756	2200	1500	1500	1470	2908	2840	500	3840	5080	1950	1680	6700
20000	22332	2400	1600	1600	1572	3112	2930	550	4030	5374	2130	1890	8300
25000	27790	2800	1800	1900	1774	3516	2280	600	3480	5028	2470	2240	9900
30000	33300	3000	1900	2000	1876	3720	2370	630	3630	5282	2650	2430	12300
40000	42100	3000	1900	2000	1876	3720	3600	630	4860	6512	2650	2430	15900
50000	52630	3000	1900	2000	1876	3720	5088	630	6348	8000	2650	2430	19800

Nozzle Size of Horizontal Glass Lined Storage Tank (3000-50000L)

NOMINAL VOLUME(L)	a	b	c	d	f1-4
3000	80	70	70	80	70
4000	80	70	70	80	70
5000	80	70	70	80	70
6300	80	70	70	80	70
8000	80	70	70	80	70
10000	100	80	80	100	70
12500	100	80	80	100	70
16000	100	80	80	100	70
20000	100	80	80	100	70
25000	100	80	80	100	70
30000	100	80	80	100	70
40000	100	80	80	100	70
50000	100	80	80	100	70
