Glass Lined Storage Tank

F8000L type glass lined chemical storage tank

F8000L type glass lined chemical storage tank



Glass lined steel tank Introduction

chemical equipment receiving tank Glass Lined Tanks(also called metering tank), is a kind of glass lined equipment for storing acid, alcohol, gas and other dangerous raw materials, divided intoglass lined steel tank, vertical open type glass lined receiving tank (i.e. K type glass lined storage tank), vertical closed type glass lined storage tank (i.e. F type glass lined storage tank), used as vacuum, can be configured with jacket for heating and insulation of the corresponding raw materials, used in petroleum, chemical, grain and oil, food, fire fighting, transportation, metallurgy and other industries.


Technical Parameters


Specification

MATERIALCarbon Steel with Glass Linning
DESIGN PRESSURE(Mpa)Atmospheric pressure
DESIGN TEMPERATURE(℃)-19 / 200
GLASS LINED THICKNESS(mm)0.8-2.0

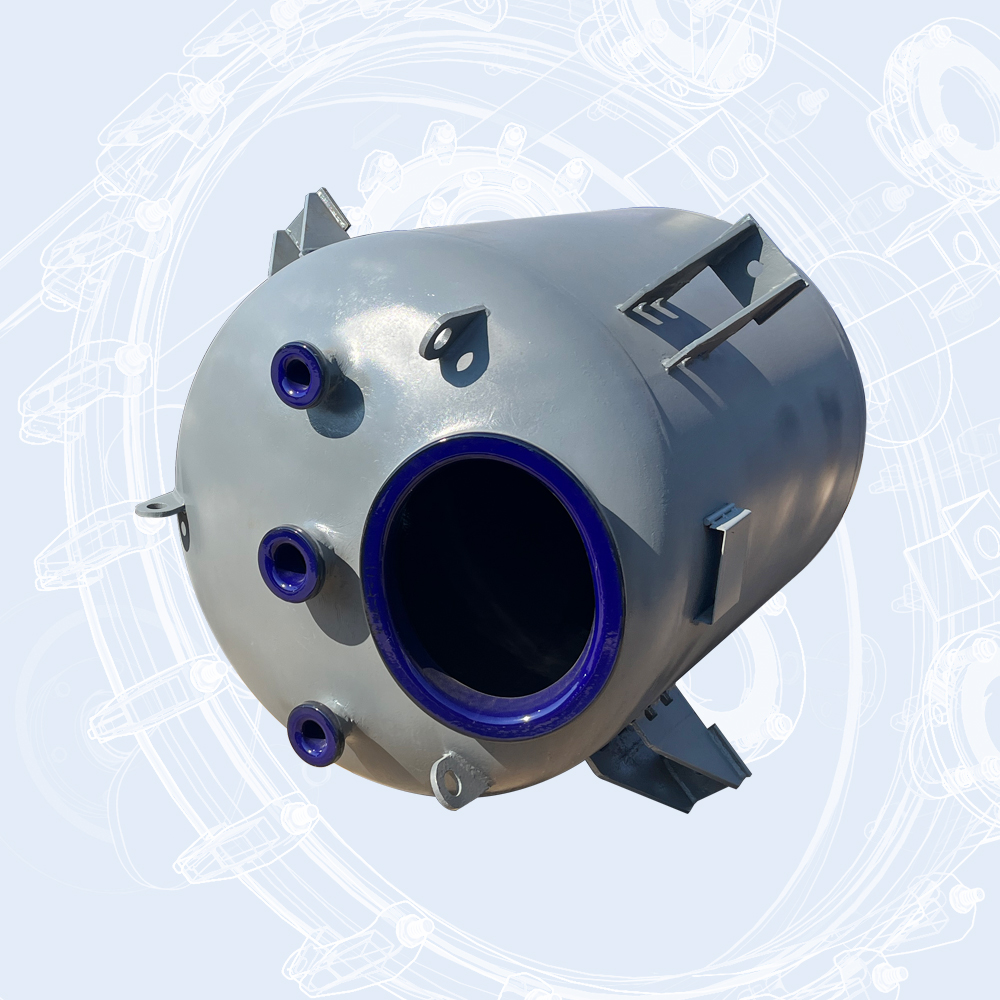

Vertical F Type Glass Lined Storage Tank

Main Dimensions of Vertical F Type Glass Lined Storage Tank (3000-50000L)

NOMINAL

VOLUME

(L)

ACTUAL

VOLUME

(L)

D

(mm)

D1

(mm)

D2

(mm)

H

(mm)

H1

(mm)


H2

(mm)


PN

0.25

Mpa


PN

0.6

Mpa


WEIGHT

(Kg)

F30003740
1600600112027403002290BM12/24AM12/241700
F500059801600600112037103003260BM12/28AM12/362000
F630070301750600122538103003280BM12/28AM12/362500
F800089101900600133041103003530BM12/28AM12/363200
F10000111402200700154040203453370BM12/36AM12/323800
F12500138702400700168041803453530BM12/36AM12/324700
F16000177602400700168050403454390BM12/36AM12/325700
F20000222172600700182053693454789BM12/36AM12/326700
F30000333013000700210059953455415BM12/36AM12/328300
F50000513663000700210085653457985BM12/36AM12/329900

Nozzle Size of Vertical F Type Glass Lined Storage Tank (3000-50000L)

NOMINAL

VOLUME(L)

a

b

c

d

g

h
3000125707070125-
5000125707070125-
6300125707070125-
8000125707070125-
10000125807070125-
12500125807070125-
16000125807070125-
20000125807070125-
30000125807070125-
50000125807070125-

Factory Scenes



Shandong Tanglian Heavy Industry Group Co., Ltd. is located in Zibo, an important modern industrial city in China. Tanglian is a well- known chemical and pharmaceutical equipment manufacturer in northern China. Shandong Tanglian Heavy Industry Group originated from Shandong Tanglian Chemical Equipment Co., Ltd., which was established in 1998 in Zibo City.

At present, the group branches Shandong Tanglian Chemical Equipment Co., Ltd., Binzhou Tanglian Chemical Machinery Co., Ltd., Shandong Tanglian Metal Products Co., Ltd., Shandong Tanglian International Trade Co.,ltd .and other subsidiaries. The company has nearly 30 years of experience in the production and design. Through continuous technology accumulation, it has provided  equipment design, manufacturing, installation and overall solution services for thousands of domestic and foreign companies. The industry-related technologies have distinctive features, the advantages are obvious.
