Glass lined steel tank Introduction
chemical equipment receiving tank Glass Lined Tanks(also called metering tank), is a kind of glass lined equipment for storing acid, alcohol, gas and other dangerous raw materials, divided intoglass lined steel tank, vertical open type glass lined receiving tank (i.e. K type glass lined storage tank), vertical closed type glass lined storage tank (i.e. F type glass lined storage tank), used as vacuum, can be configured with jacket for heating and insulation of the corresponding raw materials, used in petroleum, chemical, grain and oil, food, fire fighting, transportation, metallurgy and other industries.
Specification | ||
MATERIAL | Carbon Steel with Glass Linning | |
DESIGN PRESSURE(Mpa) | Atmospheric pressure | |
DESIGN TEMPERATURE(℃) | -19 / 200 | |
GLASS LINED THICKNESS(mm) | 0.8-2.0 |
NOMINAL VOLUME (L) | ACTUAL VOLUME (L) | D (mm) | D1 (mm) | D2 (mm) | H (mm) | H1 (mm) | H2 (mm) | PN 0.25 Mpa | PN 0.6 Mpa | WEIGHT (Kg) |
K200 | 240 | 600 | 360 | 420 | 1615 | 300 | 965 | BM12/28 | AM12/36 | 236 |
K300 | 360 | 700 | 420 | 490 | 1745 | 345 | 1070 | BM12/36 | AM16/32 | 408 |
K500 | 600 | 800 | 480 | 560 | 2130 | 380 | 1370 | BM12/40 | AM16/36 | 544 |
K1000 | 1200 | 1000 | 600 | 700 | 2350 | 430 | 1770 | BM16/40 | AM16/44 | 915 |
K2000 | 2400 | 1300 | 780 | 910 | 2610 | 505 | 1970 | BM16/56 | AM20/52 | 1400 |
Nozzle Size of Vertical K Type Glass Lined Storage Tank (200-2000L)
NOMINAL VOLUME(L) | a | b | c | d | g | h |
K200 | 125 | 70 | 70 | 70 | 70 | - |
K300 | 125 | 80 | 70 | 70 | 80 | - |
K500 | 150 | 80 | 80 | 70 | 80 | - |
K1000 | 150 | 80 | 80 | 80 | 80 | - |
K2000 | 400×300 | 100 | 80 | 80 | 100 | 80 |
Process Flow

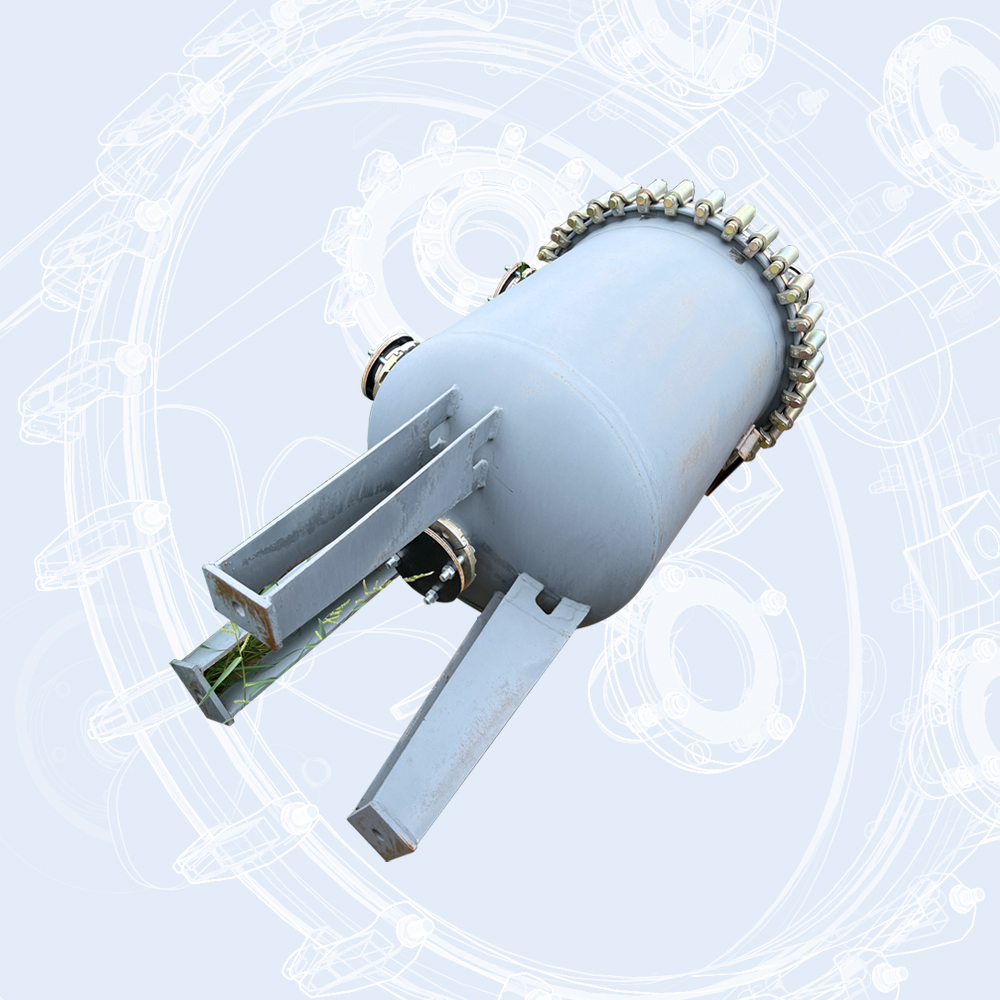

Vertical K type Corrosion resistance industrial enamel Storage Tank is separated by body and cover, connected by gasket and tank card in the middle, open type is more convenient to disassemble, this type of glass lined receiver comes with relatively small volume. However, it offers exceptional corrosion resistance, sheer reliability, stable lining and long service life.standard models are K200L, K300L, K500L, K1000L, K2000L. (Processing according to the user's drawing)
