Glass Lined Storage Tank

W3000L Type glass lined pharmaceutical process storage tank

W3000L Type glass lined pharmaceutical process storage tank


Horizontal Glass Lined Storage Tank Introduction

Glass lined storage tank (also called metering tank), is a kind of glass lined equipment for storing acid, alcohol, gas and other dangerous raw materials, divided into horizontal glass lined storage tank, vertical open type glass lined storage tank (i.e. K type glass lined storage tank), vertical closed type glass lined storage tank (i.e. F type glass lined storage tank), used as vacuum, can be configured with jacket for heating and insulation of the corresponding raw materials, used in petroleum, chemical, grain and oil, food, fire fighting, transportation, metallurgy and other industries.

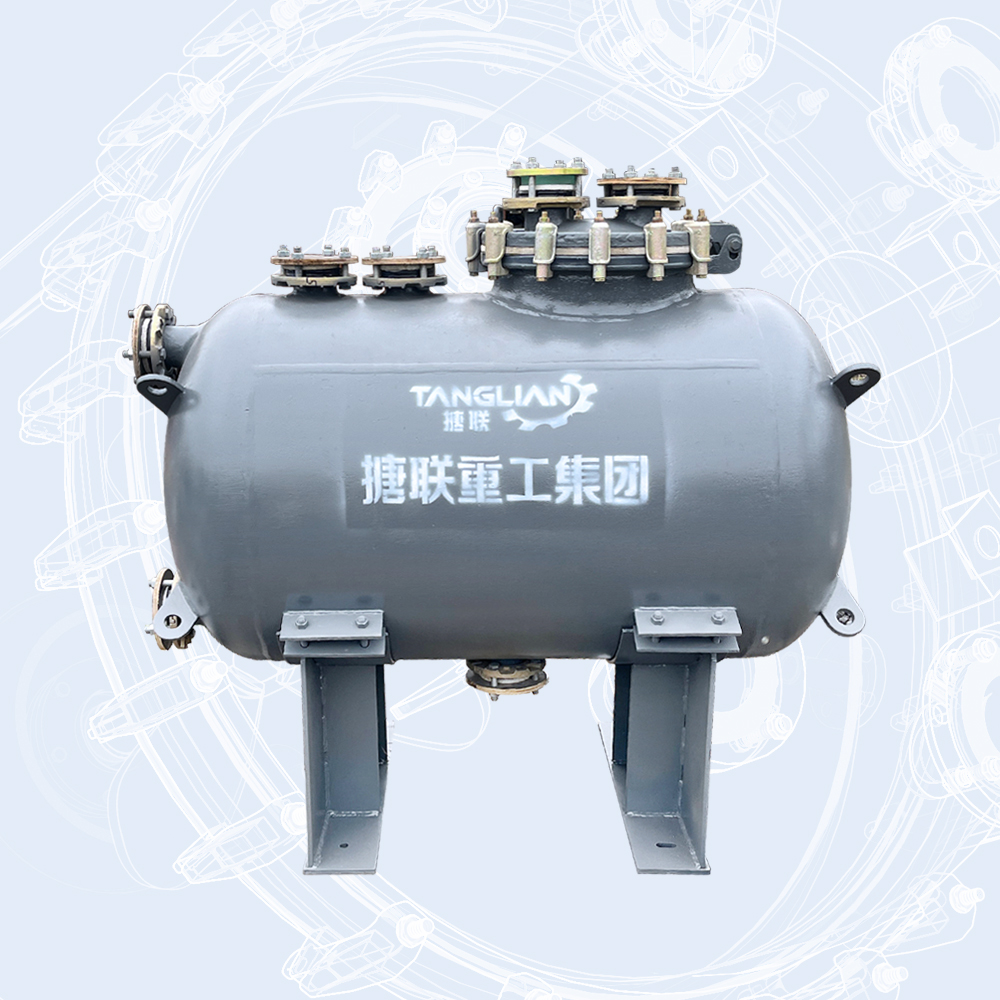

Glass lined storage tank.jpg

Technical Parameters



Specification
MATERIALCarbon Steel with Glass Linning
DESIGN PRESSURE(Mpa)Atmospheric pressure
DESIGN TEMPERATURE(℃)-19 / 200
GLASS LINED THICKNESS(mm)0.8-2.0

Glass lined storage tank

Main Dimensions of Horizontal Glass Lined Storage Tank (3000-50000L)

NOMINAL

VOLUME

(L)

ACTUAL

VOLUME

(L)

D

(mm)

H1

(mm)

H2

(mm)

H3

(mm)

H

(mm)


L1

(mm)


L2

(mm)


L3

(mm)


L

(mm)

A

(mm)


K

(mm)


WEIGHT

(Kg)

30003337
1450110012001089214693426014542288130010901700
4000445714501100120010892146149432021342968130010902000
5000555016001200120011662300142036021403052143011802500
6300702417501300130012432454147439022543246156013003200
8000891019001300140013182604159042024303496169014203800
100001109420001400140013682704188045027803900178014904700
125001392020001400140013682704274047036804800178014905700
160001775622001500150014702908284050038405080195016806700
200002233224001600160015723112293055040305374213018908300
250002779028001800190017743516228060034805028247022409900
3000033300300019002000187637202370630363052822650243012300
4000042100300019002000187637203600630486065122650243015900
5000052630300019002000187637205088630634880002650243019800

Nozzle Size of Horizontal Glass Lined Storage Tank (3000-50000L)

NOMINAL

VOLUME(L)

a

b

c

d

f1-4

30008070708070
40008070708070
50008070708070
63008070708070
80008070708070
10000100808010070
12500100808010070
16000100808010070
20000100808010070
25000100808010070
30000100808010070
40000100808010070
50000100808010070
