F/BE Type Stainless Steel Reactor Equipment

F/BE Type Stainless Steel Reactor Equipment



SS 316 chemical reactor design Introduction

SS 316 chemical reactor design has the characteristics of heating, high temperature resistance, corrosion resistance, hygiene, no environmental pollution, no boiler automatic heating, easy to use, etc. It is widely used in petroleum, chemical, rubber, pesticide, dyestuff, medicine, food, used to complete the process of vulcanization, nitrification, hydrogenation, hydrocarbonization, polymerization, condensation, etc. The reactor is composed of tank, cover, stirrer, jacket, half pipe, coil, support and transmission device, shaft sealing device, etc. The material and opening can be made according to the user's process requirements.

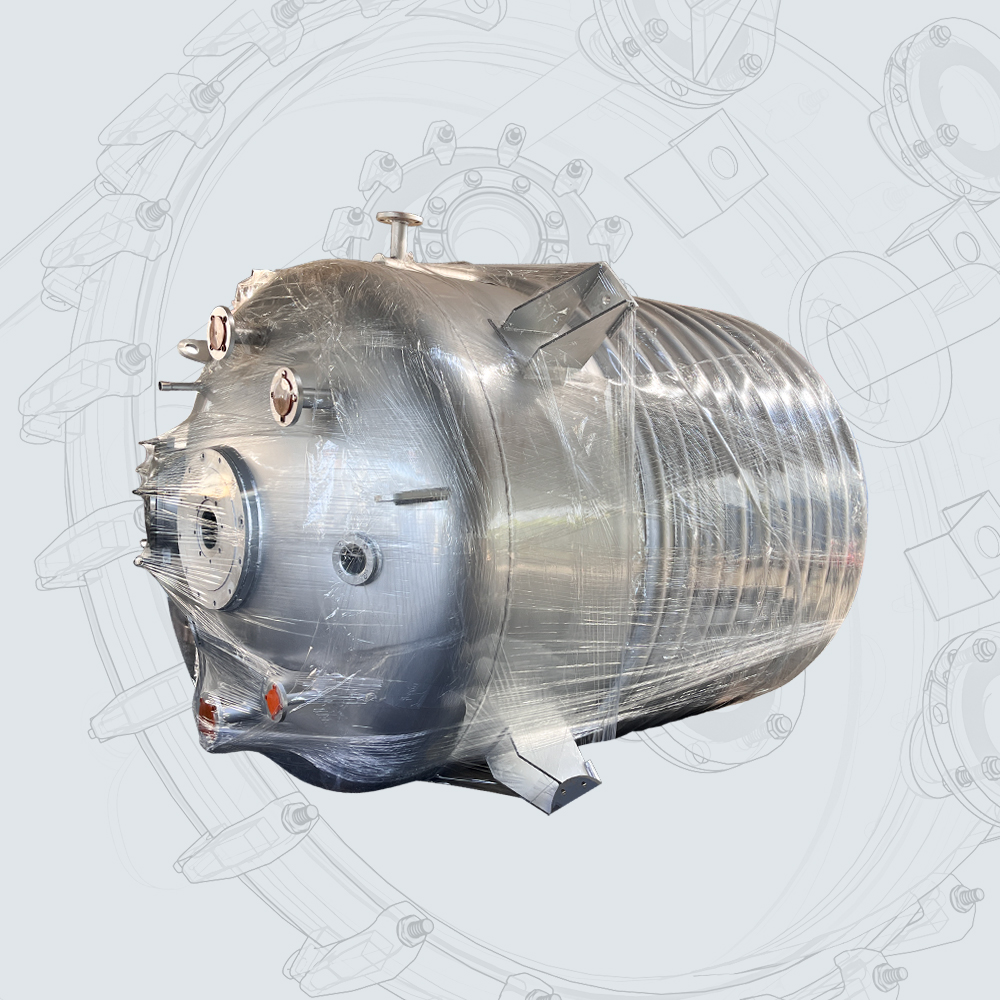

Stainless steel reactor

Stainless Steel Reactors Machinery  are divided into open and closed types. As the volume of the reaction kettle increases, more closed types are chosen to ensure the compactness of the SS 316 chemical reactor design. When selecting, users must choose the model based on their own usage needs (it can be processed according to the user's drawings, non-standard customization)

Stainless steel reaction kettles






Stainless Steel Reactors Machinery Type: open type reactor, closed type reactor

Material: Carbon steel, low alloy steel, stainless steel, duplex stainless steel, and various composite plate materials

Heating/Cooling: water, steam, heat transfer oil



Technical Parameters


INNER VESSE

JACKET
MATERIALStainless Steel 304/316Stainless Steel 304/316
DESIGN PRESSURE(Mpa)CustomizedCustomized
WORKING TEMPERATURE(℃)-196~430

Advantages

Features: Fast heating, high temperature resistance, corrosion resistance, hygiene, and no environmental pollution

Applicable Media: Various concentrations of inorganic acids, organic acids, organic solvents, and weakly alkaline solvents

Factory Scenes


Shandong Tanglian Heavy Industrial Group , one of the longest established factories for Chemical reactors / Chemical vessels in China  .
We have ISO , SGS , CE ,EU Welder Approval Test Certificate for our company , products and workers .

We mainly focus on below products
Chemical reactor ,  Storage / Receiving / Buffer tank
Column / Tower section , Pipe line
Heat exchanger  / condenser , Evaporator

Main material of our equipment :
Glass Lining ,     PTFE,ETFE,PFA Lining
Stainless Steel , Carbon Steel , Hastelloy  , DP Steel
